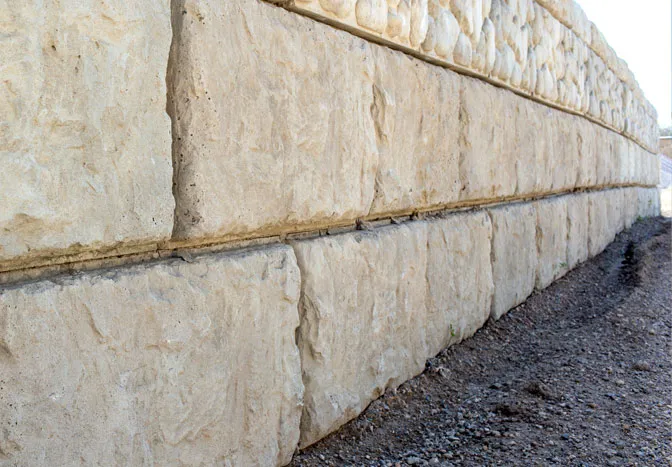

smoothface rockwall

Precast Products

Numerous precast products are also produced at Jensen Rock and Sand Inc. Our septic tanks are built with Del Zotto forms and Barrier Blocks are World Block Forms which top quality to our customers. Let us help with any of your precast needs.

Rockface & Roughface Barriers

Weigh approximately 2,400 lbs.
Half Blocks, Corners and Caps Available

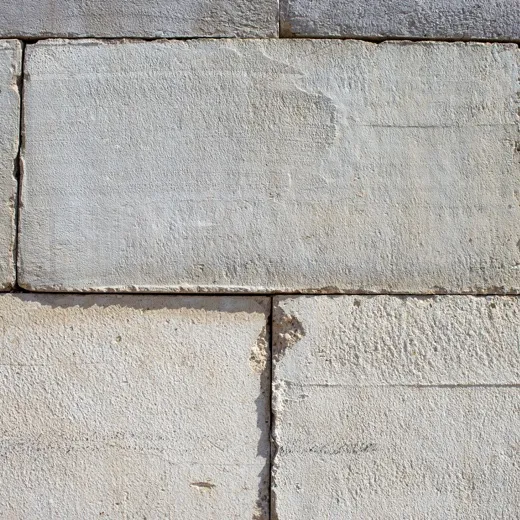

Plainface

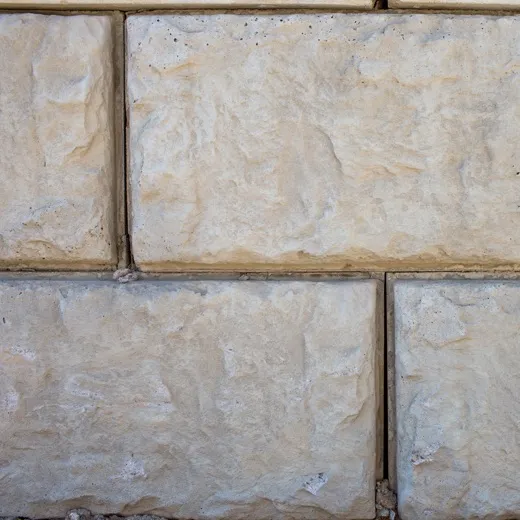

RoughFace

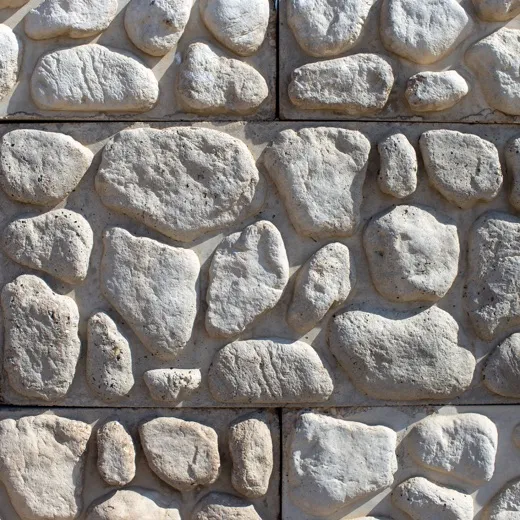

Rockface

Septic Tanks

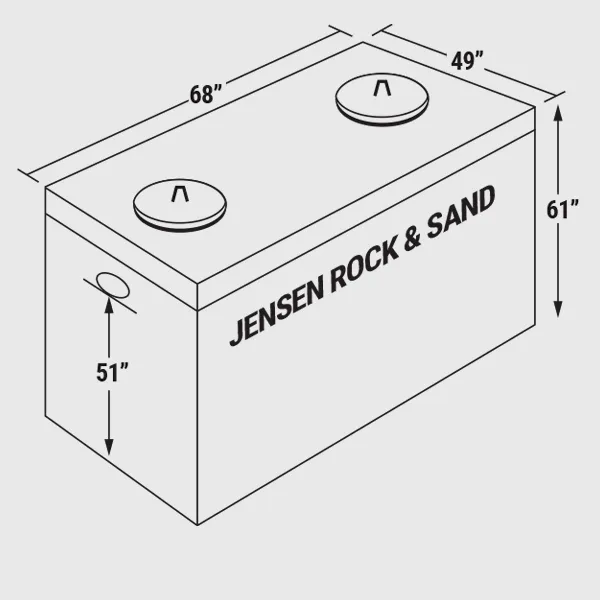

500 gallon septic tank/lift station diagram

500 Gallon Tank/Lift Station

68" wide x 49" long x 61" tall
51" bottom of inlet to bottom of tank
3" Floor and side thickness
48" bottom of outlet to bottom of tank
45" Liquid Depth
4" Inlet and Outlet Capacity
Capacity = 469 Gallons
Lid contains 2 - 6" pump holes
24" manhole available on request
Total weight 4,800 lbs. Lid 1,000 lbs.

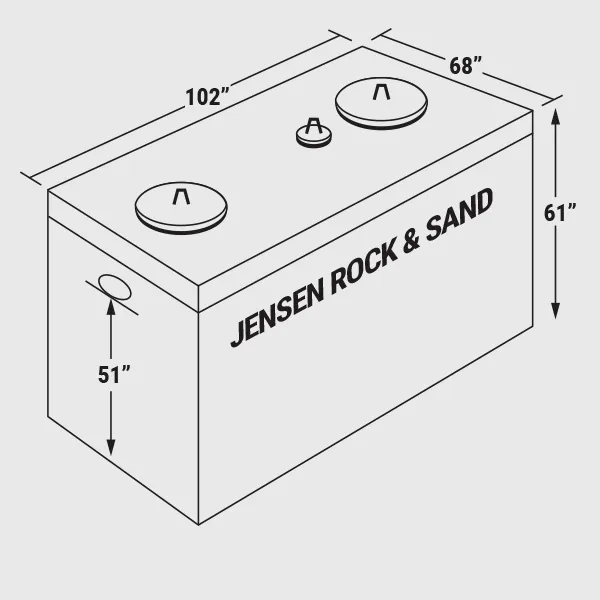

1000 gallon septic tank diagram

1000 Gallon Tank

68" wide x 102" long x 61" tall
51" bottom of inlet to bottom of tank
3" Floor and side thickness
48" bottom of outlet to bottom of tank
45" Liquid Depth
4" Inlet and Outlet Capacity
Capacity = 1083 Gallons
Lid contains 3 - 6" pump holes
24" manhole available on request
Total weight 8,600 lbs. Lid 2,200 lbs.

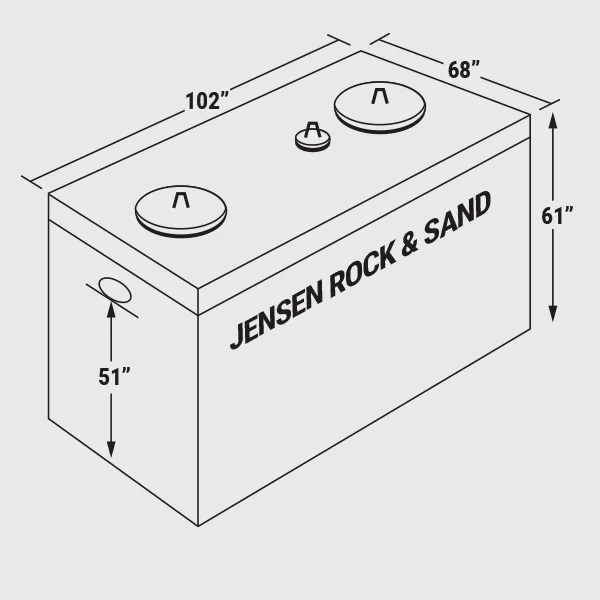

1000 gallon 2 compartment septic tank diagram

1000 Gallon Tank - 2 Compartment

68" wide x 102" long x 61" tall
51" bottom of inlet to bottom of tank
3" Floor and side thickness
48" bottom of outlet to bottom of tank
45" Liquid Depth
4" Inlet and Outlet Capacity
Capacity = 1,031 Gallons
Lid contains 3 - 6" pump holes
24" manhole available on request
Total weight 9,200 lbs. Lid 2,200 lbs. Divider 600 lbs.

1500 gallon septic tank diagram

1500 Gallon Tank - 2 Compartment

Special order
68" wide x 147" long x 61" tall
51" bottom of inlet to bottom of tank
3" Floor and side thickness
48" bottom of outlet to bottom of tank
45" Liquid Depth
4" Inlet and Outlet Capacity
Capacity = 1,552 Gallons
Lid contains 3 - 6" pump holes
24" manhole available on request
Total weight 13,000 lbs.
